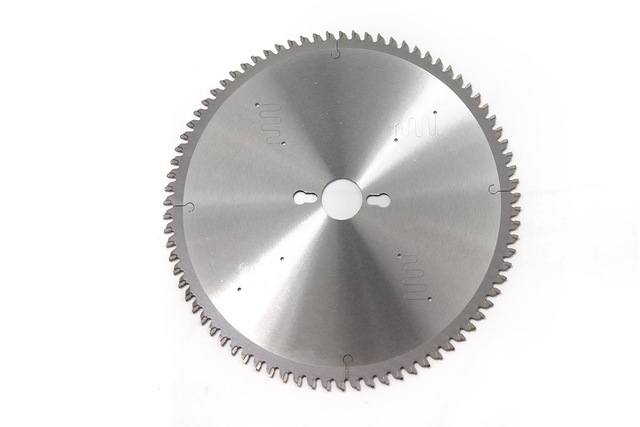

T.C.T. Circular Saw Blades For Wood Cutting
share
Detail

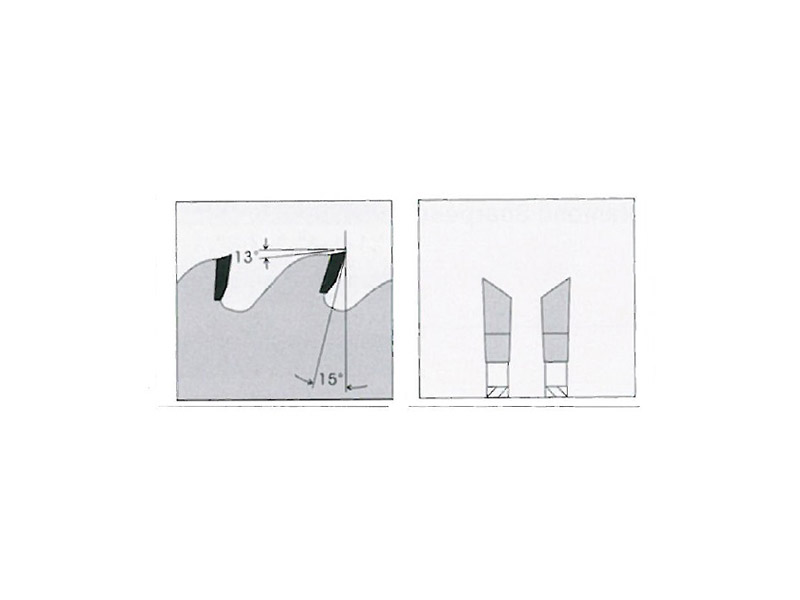

Hard body and A.T.B. tooth for light duty cutting soft and hard wood
plywood, particle board and composites.
This type of blade is suitable for both cross and rip cutting.
| Dia. MM | Dia. IN | TEETH | Plate TK | Kerf |
| 110 | 4" | 16 | 1.2mm/.047" | 2.0mm/.078" |
| 110 | 4" | 18 | 1.2mm/.047" | 2.0mm/.078" |
| 110 | 4" | 20 | 1.2mm/.047" | 2.0mm/.078" |
| 110 | 4" | 24 | 1.2mm/.047" | 2.0mm/.078" |
| 110 | 4" | 30 | 1.2mm/.047" | 2.0mm/.078" |
| 110 | 4" | 40 | 1.2mm/.047" | 2.0mm/078" |
| 150 | 6" | 16 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 18 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 20 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 24 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 30 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 40 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 50 | 1.4mm/.055" | 2.5mm/.098" |
| 150 | 6" | 60 | 1.4mm/.055" | 2.5mm/.098" |
| 180 | 7" | 12 | 1.5mm/.059" | 2.5mm/.098" |
| 180 | 7" | 14 | 1.5mm/.059" | 2.5mm/.098" |
| 180 | 7" | 16 | 1.5mm/.059" | 2.5mm/.098" |
| 180 | 7" | 18 | 1.5mm/.059" | 2.5mm/.098" |
| 180 | 7" | 20 | 1.5mm/.059" | 2.5mm/.098" |
| 205 | 8" | 18 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 20 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 24 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 3 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 40 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 50 | 1.6mm/.063" | 2.6mm/.102" |
| 205 | 8" | 60 | 1.6mm/.063" | 2.6mm/.102" |
| 230 | 9" | 12 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 20 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 24 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 30 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 40 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 50 | 1.8mm/.071" | 2.8mm/.110" |
| 230 | 9" | 60 | 1.8mm/.071" | 2.8mm/.110" |
| 254 | 10" | 24 | 2.0mm/.079" | 3.0mm/.118" |
| 254 | 10" | 30 | 2.0mm/.079" | 3.0mm/.118" |
| 254 | 10" | 40 | 2.0mm/.079" | 3.0mm/.118" |
| 254 | 10" | 50 | 2.0mm/.079" | 3.0mm/.118" |
| 254 | 10" | 60 | 2.0mm/.079" | 3.0mm/.118" |
| 254 | 10" | 80 | 2.0mm/.079" | 3.0mm/.118" |
| 305 | 12" | 32 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 40 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 48 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 54 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 60 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 72 | 2.2mm/.087" | 3.0mm/.18" |
| 305 | 12" | 84 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 96 | 2.2mm/.087" | 3.0mm/.118" |
| 305 | 12" | 100 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 48 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 54 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 60 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 72 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 84 | 2.2mm/.087" | 3.0mm/.118" |
| 355 | 14" | 96 | 2.2mm/.087" | 3.0mm/.118" |
| 405 | 16" | 40 | 2.4mm/.094" | 3.2mm/.126" |
| 405 | 16" | 60 | 2.4mm/.094" | 3.2mm/.126" |
| 405 | 16" | 80 | 2.4mm/.094" | 3.2mm/.126" |
| 405 | 16" | 100 | 2.4mm/.094" | 3.2mm/.126" |
| 405 | 16" | 120 | 2.4mm/.094" | 3.2mm/.126" |
| 455 | 18" | 60 | 2.4mm/.094" | 3.2mm/.126" |
| 455 | 18" | 80 | 2.4mm/.094" | 3.2mm/.126" |
| 455 | 18" | 100 | 2.4mm/.094" | 3.2mm/.126" |
| 455 | 18" | 120 | 2.4mm/.094" | 3.2mm/.126" |
| 455 | 18" | 140 | 2.4mm/.094" | 3.2mm/.126" |
| 505 | 20" | 80 | 2.6mm/.102" | 3.4mm/.134" |
| 505 | 20" | 100 | 2.6mm/.102" | 3.4mm/.134" |
| 505 | 20" | 120 | 2.6mm/.102" | 3.4mm/.134" |
| 505 | 20" | 140 | 2.6mm/.102" | 3.4mm/.134" |
